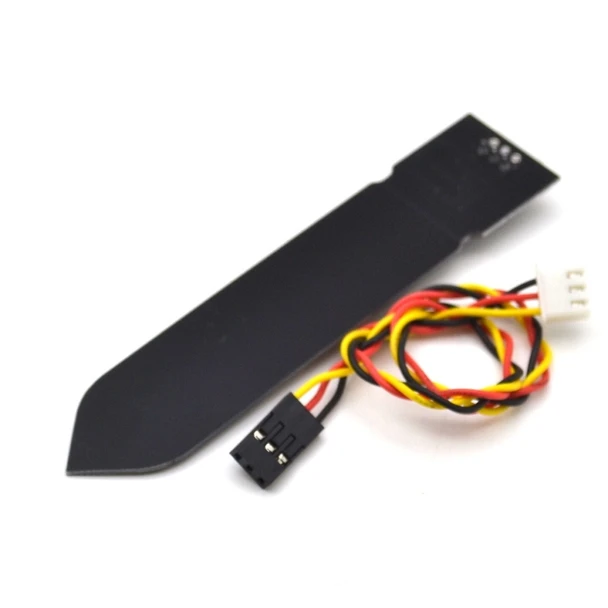

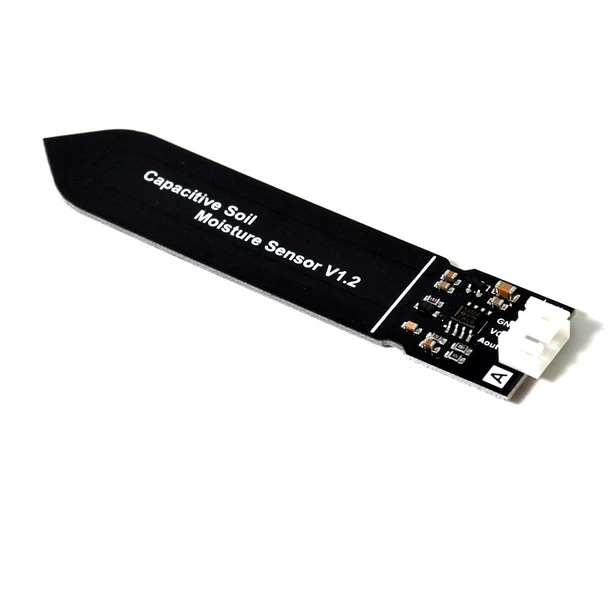

Analog Capacitive Soil Moisture Sensor

Product Detail

An Analog Capacitive Soil Moisture Sensor is a durable hardware module designed to measure soil humidity without suffering from the rapid oxidation and rust that plagues traditional resistive sensors. It works by measuring the change in capacitance caused by the dielectric properties of surrounding water content. Because the copper traces are completely insulated inside the PCB layer rather than exposed directly to wet soil, it delivers a significantly longer service life.
Core Technical Specifications
Operating Voltage: 3.3V to 5.5V DC (features an on-board voltage regulator)
Output Voltage: 0 to 3.0V DC (Analog signal)
Default Interface: PH2.0-3P or PH2.54-3P (VCC, GND, Analog Out)
Connector Compatibility: Fully supports standard 3-pin "Gravity" interfaces used by Arduino expansion shields.
Dimensions: Typically around 98mm × 23mm.
